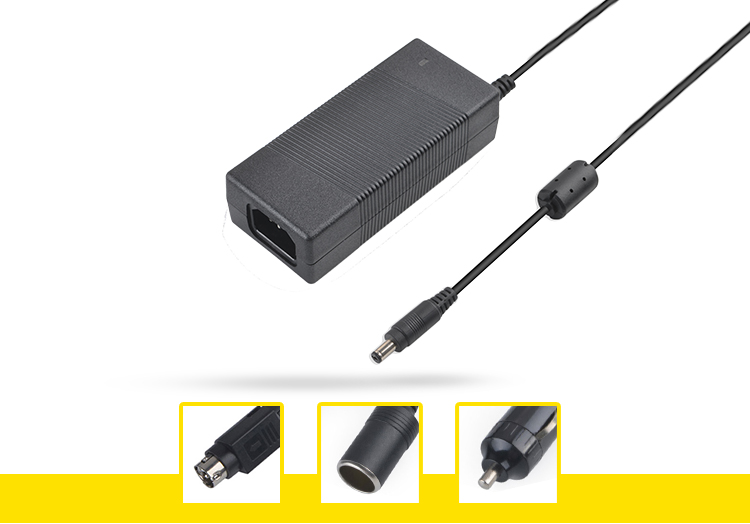

16v 3.5a Ac Dc Power Supply For Laptop Computer 3 Years Warranty

Product Categories

Shenzhen Yinghui Yuan Electronics Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	YHY
Model Number :	YHY-16003500
Supply Ability :	450,000 PCS/month
Price :	Negotiable
Certification :	UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :	T/T, Western Union,Paypal
Delivery Time :	12-14 workdays after receipt of your oder

Add to Cart

230v laptop 16 volt 1.5a 1.8a 2.4a 3a 4a ac dc power supply 16v 3.5a electrical outlet car adapter

Details

Specifications
Input Voltage Range	VAC	100-240Vac 50/60Hz
Inrush Current at 110VAC, 25℃	A
Input Current(Max)	A	2.5A(100VAC Input)
Power Factor	-	Meets EN61000-3-2
Leakage Current(220VAC 60Hz)	mA
Hold Up Time at 110VAC input, full load	ms
Temperature Coefficient	℃	±0.05%/℃
Voltage Accuracy	%	±2%
Adjustment Range	-	None
Min. Load	A	None
Total Regulation	-	±5%
Ripple & Noise	mV	120mV
Short Circuit Protection	%	Continuous - hiccup mode
Over Voltage Protection	℃	110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load	-	88% min
Operation Temperature	-	0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature	-	-10 to +85℃
Humidity (non condensing)	-	10-90% RH
Cooling	-	Convection
Withstand Voltage	-	Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Vibration (non condensing)	-	23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock	-	< 196.1 m/s2 (20G)
Safety Agency Certifications	-	UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation	-	VI
Off-Load Power Consumption	mW	<210mV
Conducted & Radiated EMI	-	EN55023-B, FCC Class B
Immunity	-	EN55024
Weight	G	280g
Size(WxLxH)	mm	115x50x30mm
Cable Length and Thickness	mm	1200mm
AC Input Connector	-	IEC 320-C8
Output Connector	mm	5.5x2.1mm (Accept more request)
MTBF 100%, 25℃	Hours	50,000 hours
Warranty	Years	2 years

16v 3.5a Ac Dc Power Supply For Laptop Computer 3 Years Warranty
