Plug In 24w Ac Switching Mode Power Supply Adaptor 50-60hz For Switching

Product Categories

Shenzhen Yinghui Yuan Electronics Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	YHY
Model Number :	YHY-12002000
Supply Ability :	450,000 PCS/month
Price :	Negotiable
Certification :	UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :	T/T, Western Union,Paypal
Delivery Time :	12-14 workdays after receipt of your oder

Add to Cart

UL CE 240v 230v 50hz dc12v 2000ma 12 volt 2 amp 2.0a adaptor led switch transformer 220v to ac dc supply 12v 2a power adapter

Details

Specifications
Input Voltage Range	VAC	100-240Vac 50/60Hz
Inrush Current at 110VAC, 25℃	A
Input Current(Max)	A	1.0A(100VAC Input)
Power Factor	-	Meets EN61000-3-2
Leakage Current(220VAC 60Hz)	mA
Hold Up Time at 110VAC input, full load	ms
Temperature Coefficient	℃	±0.05%/℃
Voltage Accuracy	%	±2%
Adjustment Range	-	None
Min. Load	A	None
Total Regulation	-	±5%
Ripple & Noise	mV	120mV
Short Circuit Protection	%	Continuous - hiccup mode
Over Voltage Protection	℃	110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load	-	88% min
Operation Temperature	-	0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature	-	-10 to +85℃
Humidity (non condensing)	-	10-90% RH
Cooling	-	Convection
Withstand Voltage	-	Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Vibration (non condensing)	-	23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock	-	< 196.1 m/s2 (20G)
Safety Agency Certifications	-	UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation	-	VI
Off-Load Power Consumption	mW	<210mV
Conducted & Radiated EMI	-	EN55023-B, FCC Class B
Immunity	-	EN55024
Weight	G	180g
Size(WxLxH)	mm	93x47x34mm
Cable Length and Thickness	mm	1200mm

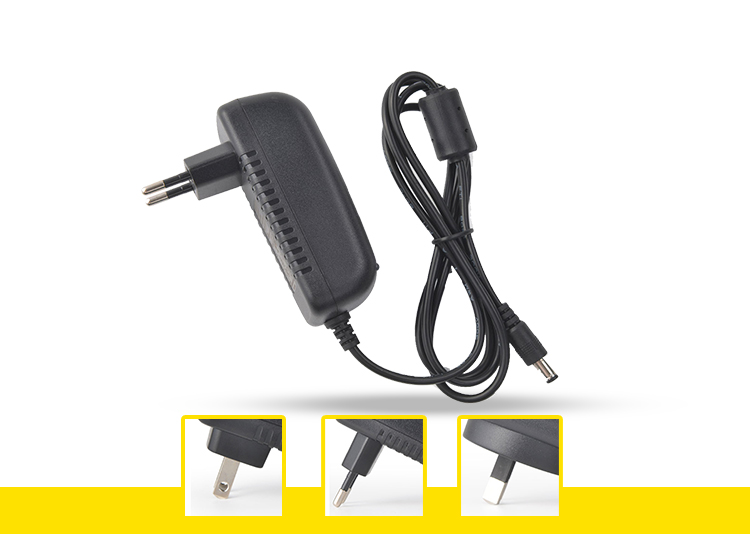

AC Input Connector	-	US EU UK AU KR JP AC Plug (Accept more request)
Output Connector	mm	5.5x2.1mm (Accept more request)
MTBF 100%, 25℃	Hours	50,000 hours
Warranty	Years	2 years

Plug In 24w Ac Switching Mode Power Supply Adaptor 50-60hz For Switching

Company Information

Plug In 24w Ac Switching Mode Power Supply Adaptor 50-60hz For Switching

Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China

-Since 2007

-Real Service From Real People^TM

-Global certifications,ISO 9001 Quality management

-More Than 2000 clients from all over the world

Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc

Plug In 24w Ac Switching Mode Power Supply Adaptor 50-60hz For Switching

Packaging & Shipping

Plug In 24w Ac Switching Mode Power Supply Adaptor 50-60hz For Switching

Shipment:

The delivery time is strarting from we confirm the payment.
In case of delay the delivery,so hope you charge it as soon as possible .
Exact lead time is based on your amounts and fact. so you'd better show me your exact qty,not uncertain
Some delivery time as follow:

Qty (pcs)	Delivery Time (working days)
less than 100	5-7
100-800	7-10
800-3K	10-12
3K-10K	15-18
10K-20k	20-22
*Data is a reference for buyer, Specification situation will be given to you after asking us.
Remark
1.Samples (less than 10pcs) can be provied, lead time with 3days.
2.Please carefully check all the details before you take a order.
